Copy Color Elements Legend

29 november 2024

The latest version of Naviate Accelerate includes a way to create a Color Legend in the view where you have colored information. A customer reached out and needed a way to get the Color Legend into a proper Revit Legend View instead. Enter a small experimental piece of software - Copy Color Legend!

Copy Color Elements Legend

Workflow

  • Start with creating colors using Naviate Color Elements
  • Create a Color Fill Legend in the active view (you might also want to save the colors to your Revit Filters)

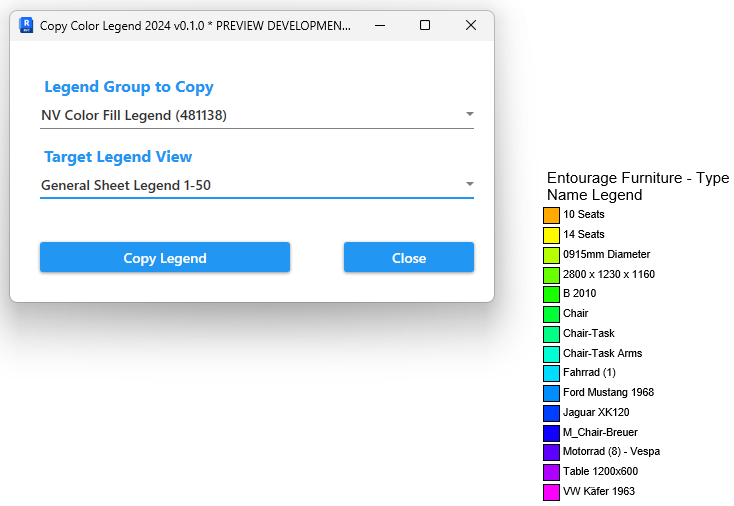

  • Start Copy Color Legend
  • Select the Color Fill Legend group and the Legend View where you would like to copy it

Please Note

The application only works with Naviate Color Elements Fill Legends and will currently not update an existing copied legend, it will create another copy.

It's probably a good idea to make sure that the original View and the Legend View has the same scale.

The application is available for Revit 2023-2025.

Technical Support / Requests

You may contact us at labs@symetri.com or reach out to your favorite Symetri associate!

Revision History

v0.1.0 2024-11-29
Initial Release

Please Note

The software solutions published at Symetri Labs are provided free of charge but with the understanding that they are experimental. They not only might have issues - they certainly will have.
Please take care, verify results, backup your data and reach out to us whenever you find issues.

At any time the software might change or even dissappear, we might update, bugfix, enhance and we might not. It might appear in Naviate or it might not.

Please Refer to the Symetri Labs EULA before downloading.
